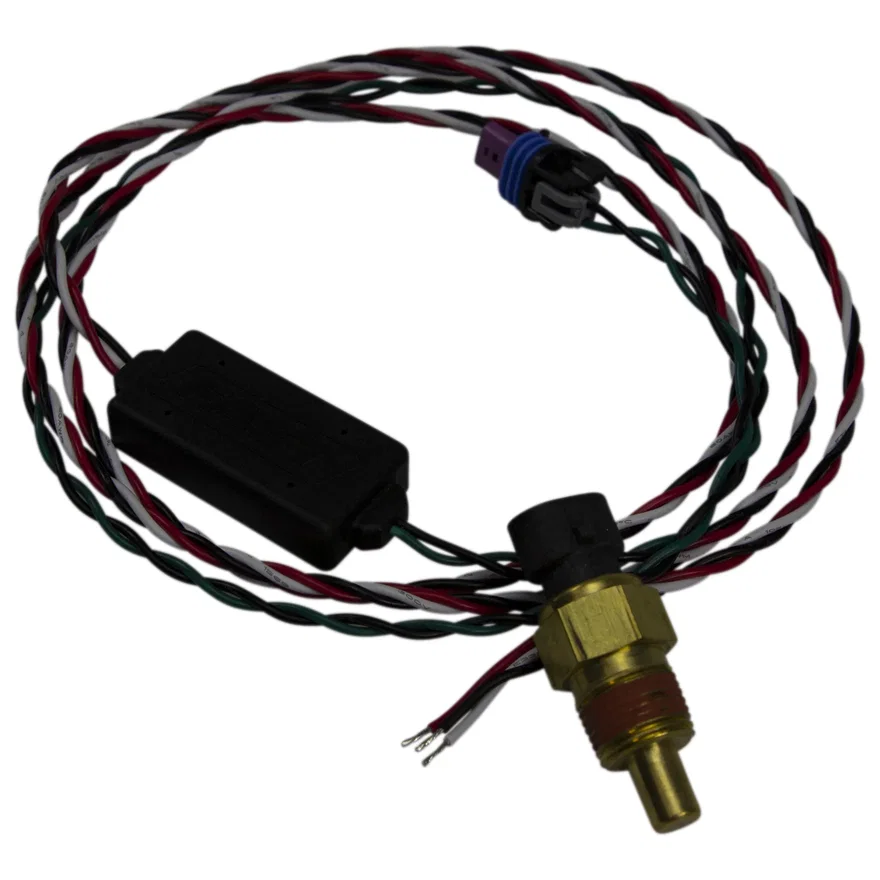

FAST Fluid Digital Temperature Sensor w/ 12 Volt to 5 Volt Output Converter Kit
Part # 307038SKU FAS307038
Universal fit
| Brand | FAST |
|---|---|
| Part type | Engine Coolant Temperature Sensor |
| Electrical Connector Type | Metri-pack |
| Input Voltage | 12 |
| Module Size | 2.5x1.0x.5 in |
| Sensor Included | Yes |
| Sensor Output Voltage Range/Reference | 0-5 |
| Sensor Part Number | 307003 |
| Sensor Side Connector Included? | Yes |
| Sensor Thread Pitch | 3/8 NPT in |
| Sensor Wire Length | 24 in |
| Sensor Wires Pre-Terminated? | Yes |
| Temperature Range | -40 to 275 Deg. F |
| Twisted Triple Wire Length | 48 in |
| Wire Gauge | 20 AWG |
| UPC / GTIN | 00036584404224 |
Description
The FAST Digital Fluid Temperature Sensor Kit provides a simple and cost effective way to measure fluid temperatures and then convert to a universal 0-5V output, perfect for any data logger or engine computer. Designed around the widely available GM style Fluid Temperature Sensor, the kit is ideal when trying to measure parameters such as engine oil and coolant temps, before and after intercooler/heat exchanger temps, transmission or even rear differential temps. Kit comes complete with fluid temp sensor and pre-terminated sensor module. Installation is simple, with only 3 wires to connect
