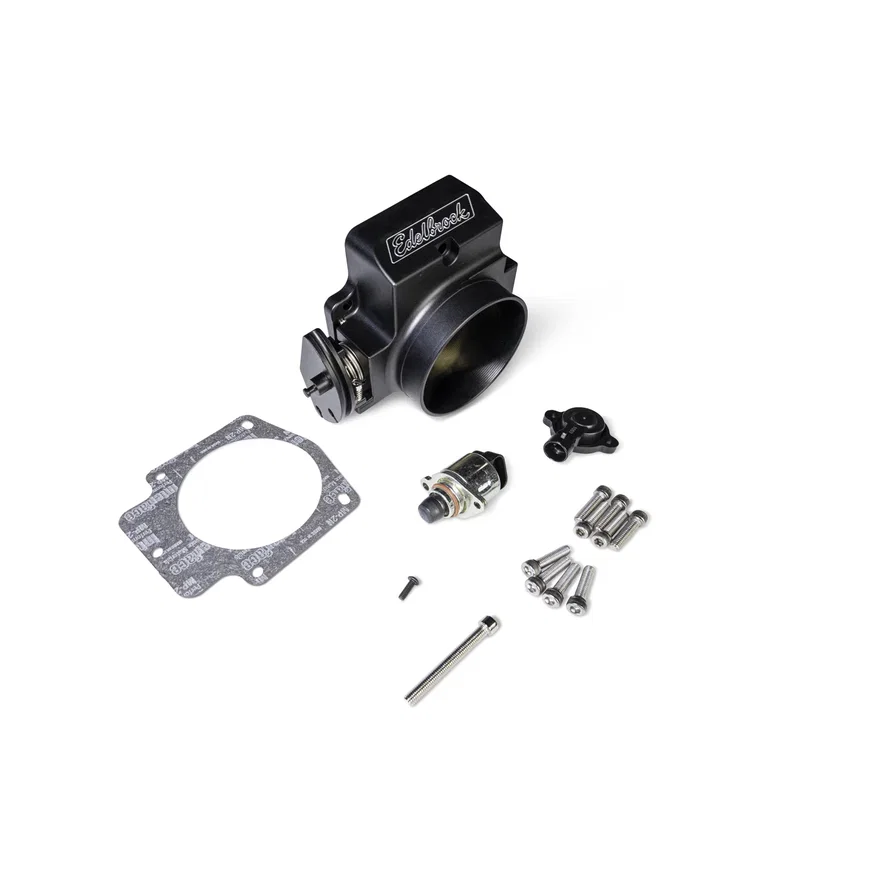

Edelbrock Victor LS Series 90mm Throttle Body, Black
Part # 39703SKU EDE39703
Universal fit
| Brand | Edelbrock |
|---|---|
| Part type | Fuel Injection Throttle Body |
| Airflow Rate | 1000cfm |
| Bore Diameter | 90mm |
| Fuel Injectors Included | No |
| Gasket Or Seal Included | Yes |
| Hardware Included | Yes |
| Idle Air Control Motor Included | Yes |
| Throttle Body Actuation | Cable |
| Throttle Body Finish | Satin Black Anodized |
| Throttle Body Material | Billet Aluminum |
| Throttle Body Type | Multi Port Injection |
| Throttle Position Sensor Included | Yes |
| Venturi Quantity | Single |
| UPC / GTIN | 00085347397037 |
- Cable driven. Enlarged bore and progressive throttle linkage allowing for increased airflow and enhanced low-speed drivability. Provisions for either LS1 or LS2 mounting bolt patterns.
- Features a double return spring providing solid throttle control and safe functionality. High quality CNC Billet Aluminum construction
- Includes GM Factory Throttle Position Sensor, Inlet Air Control Valve and Throttle Body Mounting Hardware and Gasket
Description
Constructed from billet aluminum, the new Edelbrock 90mm Victor Series Pro-Flo XT(TM) Throttle Body, complete with TPS and IAC, maximizes performance upgrades on all Pro-Flo XT, EFI Victor Elbow, and Gen III and Gen IV engines with cable-driven throttle bodies. With bolt patterns for both LS generations, these enlarged single-bore throttle bodies feature a progressive throttle linkage and parabolic bore design for increased power and enhanced low-speed drivability. A thicker throttle blade eliminates deflection for boosted applications, while a beefed-up linkage and dual-spring mechanism ensure safety and total throttle control. Available in either black (#39703) or satin (#3970) finishes to look great in any engine bay!
