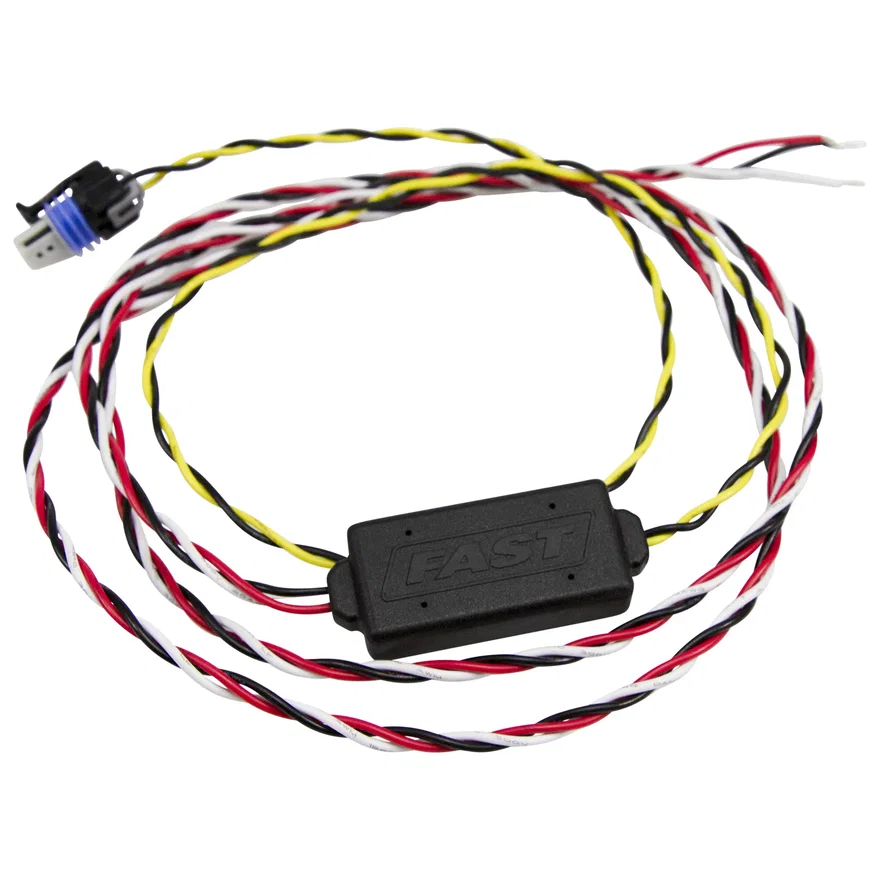

FAST Air Temperature Sensor Voltage Conversion Module
Part # 307071SKU FAS307071
Universal fit
| Brand | FAST |
|---|---|
| Part type | Air Charge Temperature Sensor |
| Electrical Connector Type | Metri-pack |
| Input Voltage | 12 |
| Module Size | 2.5x1.0x.5 in |
| Sensor Included | No |
| Sensor Output Voltage Range/Reference | 0-5 |
| Sensor Part Number | 307039 |
| Sensor Side Connector Included? | Yes |
| Sensor Thread Pitch | 3/8 NPT in |
| Sensor Wire Length | 24 in |
| Sensor Wires Pre-Terminated? | Yes |
| Temperature Range | -40 to 275 Deg. F |
| Twisted Triple Wire Length | 48 in |
| Wire Gauge | 20 AWG |
| UPC / GTIN | 00036584404231 |
- Designed to be used with our 307039 Air Temperature Sensor or purchased in a kit with the sensor under 307037, this converter is designed to provide a 0-5 V signal outputIdeal for adding additional air temp inputs to dataloggers and EFI
Description
Designed to funtion in conjunction with the widely available GM style Intake Air Temperature Sensor, the module is ideal when trying to measure parameters such as engine inlet air, temps before and after intercooler/heat exchangers or even brake duct temps. Module comes pre-terminated. Installation is simple, with only 3 wires to connect
