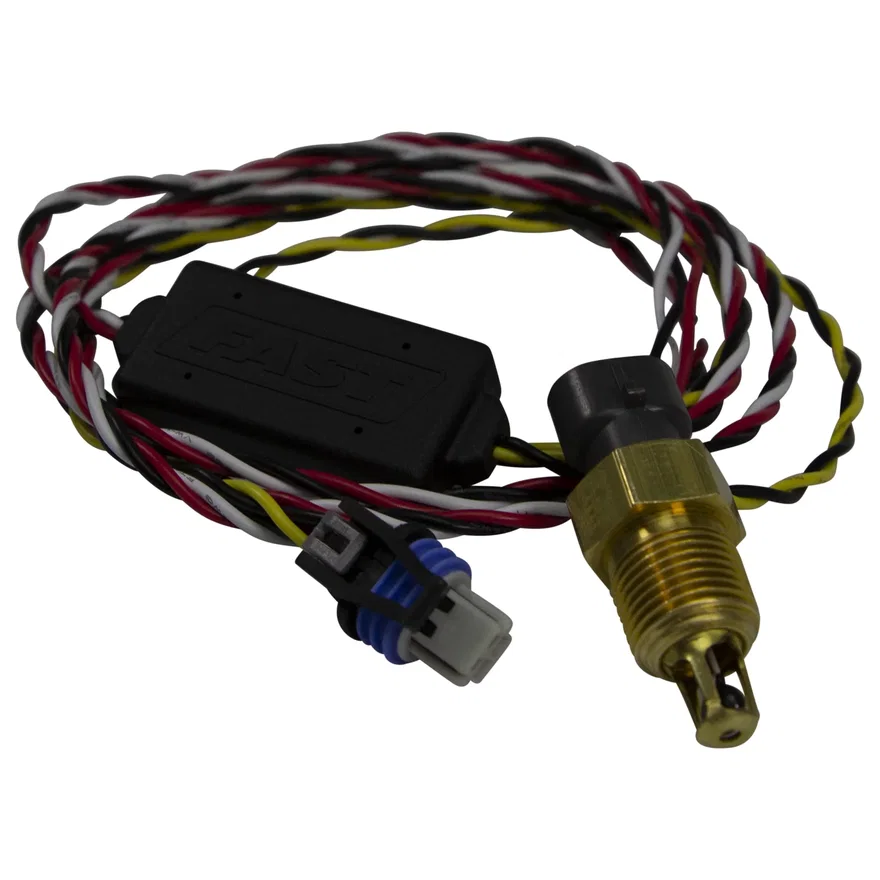

FAST Air Temperature Sensor w/ 12 Volt to 5 Volt Output Converter Kit
Part # 307037SKU FAS307037
Universal fit
| Brand | FAST |
|---|---|
| Part type | Air Charge Temperature Sensor |
| Electrical Connector Type | Metri-pack |
| Input Voltage | 12 |
| Module Size | 2.5x1.0x.5 in |
| Sensor Included | Yes |
| Sensor Output Voltage Range/Reference | 0-5 |
| Sensor Part Number | 307039 |
| Sensor Side Connector Included? | Yes |
| Sensor Thread Pitch | 3/8 NPT in |
| Sensor Wire Length | 24 in |
| Sensor Wires Pre-Terminated? | Yes |
| Temperature Range | -40 to 275 Deg. F |
| Twisted Triple Wire Length | 48 in |
| Wire Gauge | 20 AWG |
| UPC / GTIN | 00036584403036 |
Description
The FAST Digital Air Temperature Sensor Kit provides a simple and cost effective way to measure air temperatures and then convert to a universal 0-5V output, perfect for any data logger or engine computer. Designed around the widely available GM style Intake Air Temperature Sensor, the kit is ideal when trying to measure parameters such as engine inlet air, temps before and after intercooler/heat exchangers or even brake duct temps. Kit comes complete with heavy duty air temp sensor and pre-terminated sensor module. Installation is simple, with only 3 wires to connect
